| Max Printing Resolution | Up to 2400 x 600 dpi (mono) / up to 2400 x 600 dpi (color) |
| Max Printing Resolution Class | Up to 2400 x 600 dpi (mono) / up to 2400 x 600 dpi (color) |
| Max Printing Speed | Up to 33 ppm (mono) / up to 33 ppm (color) |
| Printer Drivers / Emulations | PCL 6, BR-Script 3, PDF 1.7, XPS 1.0 |
| Automatic Duplexing | Yes |
| First Print Out Time B/W | 15 sec |
| First Print Out Time Color | 15 sec |
| Interfaces | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A |
| Security Protocols & Features | Kerberos, SSL, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, ARP, Wi-Fi Direct, EAP-TTLS, EAP-TLS, EAP-FAST, EAP-MD5 |
| Operating System Support | MS Windows 7, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, Windows 8, Windows 8.1, MS Windows Server 2012 R2, Windows 10, Apple Mac OS X 10.11.x, macOS 10.12, MS Windows Server 2016, Apple Mac OS X 10.10.5 |
| Consumables Included | 1 x toner cartridge (black) - up to 6500 pages ISO/IEC 19798 - Brother TN436BK ¦ 1 x toner cartridge (cyan) - up to 6500 pages ISO/IEC 19798 - Brother TN436C ¦ 1 x toner cartridge (magenta) - up to 6500 pages ISO/IEC 19798 - Brother TN436M ¦ 1 x toner cartridge (yellow) - up to 6500 pages ISO/IEC 19798 - Brother TN436Y ¦ 1 x drum - up to 50000 pages - Brother DR433CL ¦ 1 x waste toner collector - up to 50000 pages - Brother WT320CL ¦ 1 x belt - up to 50000 pages - Brother BU330CL |
| Compliant Standards | IEC 60825-1:2007 |
| Max Copying Speed | Up to 33 ppm (mono) / up to 33 ppm (color) |
| Max Copying Resolution | Up to 1200 x 600 dpi (mono) / up to 1200 x 600 dpi (color) |
| Max Copying Resolution Class | Up to 1200 x 600 dpi (mono) / up to 1200 x 600 dpi (color) |
| Max Document Enlargement | 400% |
| Max Document Reduction | 25% |
| Maximum Copies | 999 |
| Automatic Duplexing | Yes |
| Scan Element | CIS |
| Automatic Duplexing | Yes |
| Gray Scale Depth | 8 bit |
| Optical Resolution | 1200 x 2400 dpi |
| Interpolated Resolution | 19200 x 19200 dpi |
| Grayscale Depth | 8-bit |
| Color Depth | 24-bit |
| Color Depth (Internal) | 48-bit |
| Scanning Resolution Details | 1200 x 2400 dpi - flatbed ¦ 1200 x 600 dpi - ADF |
| Compatibility | Super G3 |
| Max Transmission Speed | 33.6 Kbps |
| Data Compression System | MH, MR, MMR, JBIG |
| Fax Resolutions | 203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi |
| Reception Memory Capacity | Up to 500 pages |
| Transmission Memory Capacity | Up to 500 pages |
| Width | 19.5 in |
| Depth | 20.7 in |
| Height | 21.6 in |
| Weight | 65.4 lbs |
| Standard Memory | 1 GB |
| ENERGY STAR Qualified | Yes |
| Shipping Width | 26.6 in |
| Shipping Depth | 25.7 in |
| Shipping Height | 28.6 in |
| Shipping Weight | 79.3 lbs |
| Sound Emission | 49 dBA (operating) |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 90 °F |
| Humidity Range Operating | 20 - 80% |

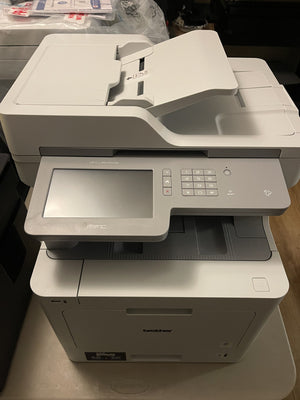

| Device Type | Multifunction printer |
| Fax Type | Plain paper |
| Printing Technology | Laser - color |
| Monthly Duty Cycle (max) | 80000 pages |
| Recommended Monthly Volume | 6000 pages |
| Display Diagonal Size | 7" |
| Display Color Support | Color |
| Color Support | Color |
| Display Features | Touch screen |
| PC Connection Availability | Yes |
| Connection Availability | Yes |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC |
| PC Connection | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC |
| AirPrint Enabled | Yes |
| Office Machine Features | Print from USB flash drive, scan to e-mail, scan to Cloud, scan to FTP, scan to OCR, scan to USB host, scan to image, scan to e-mail server |
| Error Correction Mode (ECM) | Yes |
| Speed Dialing | 300 station(s) |
| Telephone / Fax Switch | Yes |
| Broadcast Transmission | 350 stations |
| Features | Fax forwarding, group dialing, delayed sending, Duplex Fax |
| Max Original Size | Legal (8.5 in x 14 in) |
| Original Type | Sheets |
| Document Feeder Capacity | 80 sheets |
| Min Media Size | 3 in x 5 in |
| Max Media Size | A4/Legal |
| Min Media Weight | 60 g/m² |
| Max Media Weight | 163 g/m² |
| Min Media Weight (lb) | 16 lbs |
| Max Media Weight (lb) | 43 lbs |
| Supported Media Type | Envelopes, plain paper, labels, recycled paper, bond paper, glossy paper, colored paper, letterheaded paper |
| Supported Media Sizes | Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), Executive (7.25 in x 10.5 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), A6 (4.13 in x 5.83 in), Folio (8.5 in x 13 in) |
| Supported Envelope Sizes | International DL (4.33 in x 8.66 in), Com-10 (4.13 in x 9.5 in), International C5 (6.38 in x 9 in), Monarch (3.87 in x 7.5 in) |
| Standard Media Capacity | 300 sheets |
| Bypass Feeder Capacity | 50 sheets |
| Output Trays Capacity | 150 sheets |
| Document & Media Handling Details | Input tray - 250 sheets - Legal (8.5 in x 14 in) weight: 60 g/m² - 105 g/m²; weight (lbs): 16 lbs - 28 lbs ¦ Bypass tray - 50 sheets size: 3 in x 5 in - Legal (8.5 in x 14 in) weight: 60 g/m² - 163 g/m²; weight (lbs): 16 lbs - 43 lbs ¦ ADF - 80 sheets size: 4.13 in x 5.8 in - Legal (8.5 in x 14 in) weight: 64 g/m² - 90 g/m²; weight (lbs): 17 lbs - 24 lbs ¦ Output tray - 150 sheets |
| Speed Details | Printing: up to 31 ppm (A4) - B/W ¦ Printing: up to 31 ppm (A4) - color ¦ Printing: up to 33 ppm (Letter A) - B/W ¦ Printing: up to 33 ppm (Letter A) - color ¦ Copying: up to 31 ppm (A4) - B/W ¦ Copying: up to 31 ppm (A4) - color ¦ Copying: up to 33 ppm (Letter A) - B/W ¦ Copying: up to 33 ppm (Letter A) - color ¦ Scanning: up to 50 ipm (A4) - B/W ¦ Scanning: up to 50 ipm (A4) - color ¦ Scanning: up to 52 ipm (Letter A) - B/W ¦ Scanning: up to 52 ipm (Letter A) - color ¦ Scanning: up to 100 ipm (A4) - B/W duplex ¦ Scanning: up to 100 ipm (A4) - color duplex ¦ Scanning: up to 104 ipm (Letter A) - B/W duplex ¦ Scanning: up to 104 ipm (Letter A) - color duplex |
| Voltage Required | AC 120 V (50/60Hz) |
| Power Consumption Operational | 600 Watt |
| Power Consumption Standby | 75 Watt |
| Power Consumption Sleep | 9.5 Watt |
